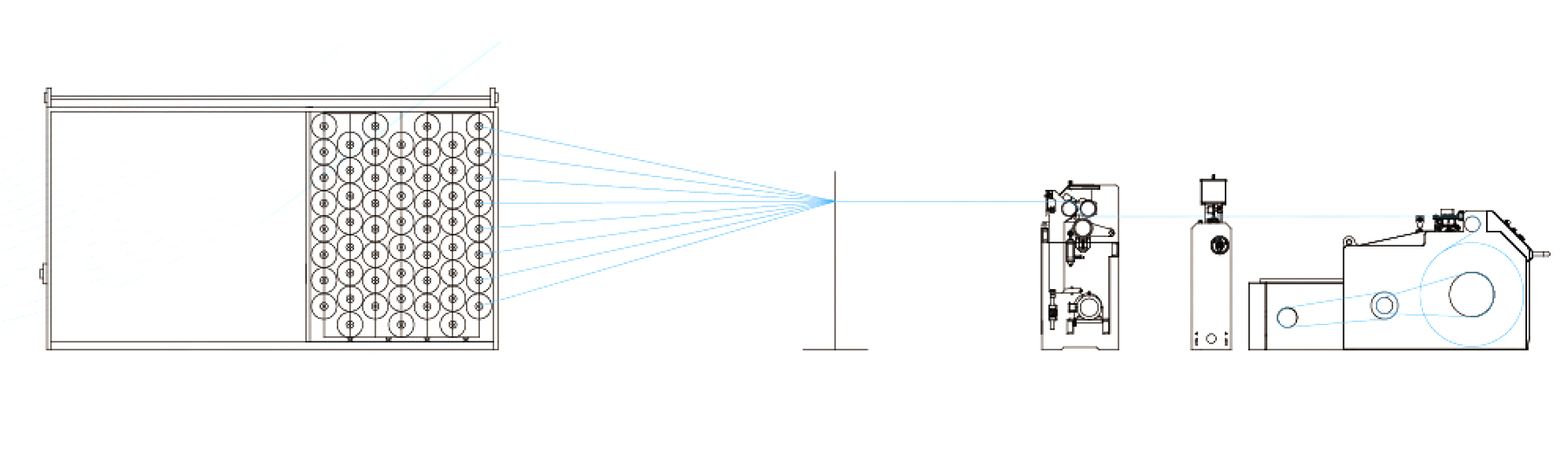

Scope of application:
The machine arranges the bobbin yarn evenly through the reed, and then winds it into a warping shaft for sizing or combining. Can be equipped with electrostatic eliminator
(customer option)

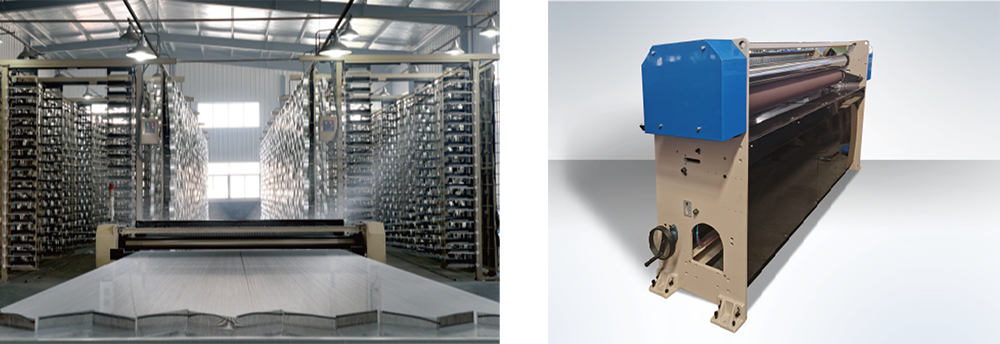

Reel holder:
· According to customer needs, it can be made into fixed type or flip type.
· According to customer site space requirements, it can be made into two rows, three rows or four rows, six rows of lead wires, etc.
· Equipped with a contact-type automatic stop device for broken wires.
· Equipped with six-ring tensioner (special shape can be customized) can be equipped with static elimination device (customer optional).
Tension stand：
· The clamping tension control method will not cause the thread and the roller to slide and damage the thread during operation. Various types of thread types can obtain high-quality warping beams. When the machine is stopped, the nip rolls are quickly disengaged, so the thread will not be damaged. Active tension control of the coiling tension through tension feedback from the tension stand to keep the tension constant.
Coil section:
· Equipped with pressure roller device to increase the coiling hardness and the flatness of the wire surface.
· Equipped with telescopic buckle frame and telescopic buckle.-9.png?imageView2/2/format/jp2)
| Top speed | 600 m /min 700 m /min | ||||
| The Width of Take-up Working | 1800mm | 2000mm | 2200mm | 2400mm | 2800mm |
| The Most Root Number of Sizing | 2000 | 2200 | 2400 | 2600 | 3200 |
| Drirving mode | AC vector motor | ||||
| The Control Mode of Coiling Tension | The Control Mode for tension Feedback for AC Vector | ||||
| The Control Scope of Coiling Tension | 12 kg -75 kg | ||||
| The Loading and Unloading System of Plasma Axis | Pneumatic device loading and unloading | ||||
| The Diameter of Coiling Plasma Shaft | Φ800 mm Φ920mm Φ1000mm |
||||
| The Display System | Touch-operated Displays | ||||
| The Electrical Assermbly | 30 KVA | ||||
| The Oiling System at The Back | The Touch Roller Oiling Method(Waxing) | ||||
Suzhou Sifang Technology Co., Ltd. is China warping machine manufacturers and SFZ700 Type Warping Machine factory with more than 30 years of experience.
The company has more than 100 employees. As a professional manufacturer of SFZ700 Type Warping Machine. It has excellent processing and metal cutting equipment, as well as excellent design and development personnel, and high-quality employees team, and a strong quality management system.
The products are exported to many countries, with a total of seven sales outlets and sales of over 100 million US dollars.
The company's existing professional production machinery and equipment, production and supply of various series of products: SFZ700 series warping machine, SFJ600 series pulp wire, SFZJ600 series sizing machine, SFB300 series parallel axis machine, SFJ100 series drying drum pulping machine.
In particular, we always research and provide individual solutions according to the needs of our customers, and we make special customizations. Suzhou Sifang Technology Co., Ltd. has more than 6,000 square meters of modern workshops and other world-leading hardware; equipped with advanced processing systems. Realize mass production and partial assembly line operation.
Service Capability: In order to establish and enhance the popularity of Sifang Technology brand in overseas markets, we always adhere to the corporate culture of "Honesty, being a man, breaking into the world Team work goes all way", focus on developing and expanding the sales service center, and focus on SFZ700 Type Warping Machine product quality , to ensure product after-sales.
