Read MoreScope of application:
The warping shafts can be evenly sized by reed arrangement, dried and then wound into pulp shafts.
Decommissioning parts:
· Active decoupling, the decoupling tension is driven by the tension motor, and the PLC and inverter control the tension to keep the tension constant.
· Beaming up and down and beating on the beam and pneumatic control.
The Sizing Parts
The Dry Parts
The Winding Parts

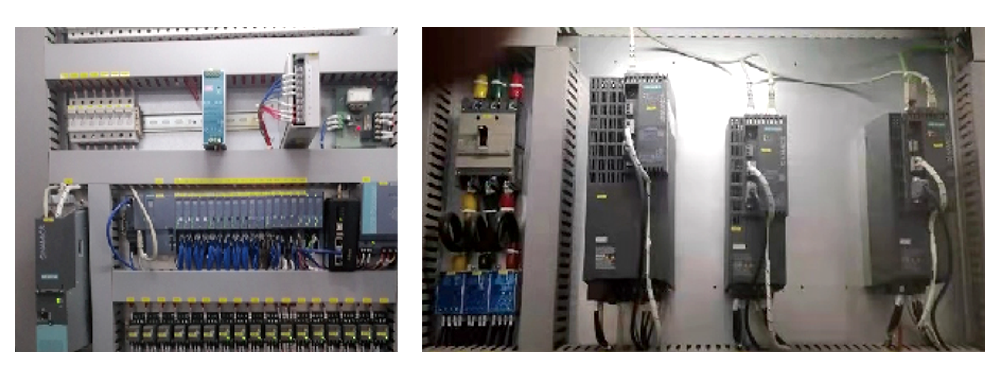

The Control Unit
Top speed | 500 m/ min | 600 m/min | |||
The Width of Take-up Working | 1800mm | 2000mm | 2200mm | 2400mm | 2800mm |
The Most Root Number of Sizing | 2000 | 2200 | 2400 | 2600 | 3000 |
The Sizing Way | The Compression Mode | ||||
The Diameter of Dipping Roller | Φ200 mm | ||||
The Diameter of Sizing Roller | Φ240 mm | ||||
The Diameter of Squeezing Roller | Φ220 mm | ||||
Pressure grouting method/Maximum Load | The Grouting Method for Uniform Pressuer/Maximum 1500kg | ||||
The Drying Way | Steam | natural gas | Heat transfer oil | ||
The length of The Chamber | 4m +4m+4 m 4.5m + 4.5m+4.5m | ||||
The Diameter of Drying Cyinder | Φ800 mm | ||||
The Number of Drying Cylinder | five or seven | ||||
The System of Thermal Control System | Automatic temperature control system | ||||
The Oiling System at The Back | The Touch Roller Oiling Method(Waxing) | ||||
The Cooling System | The Cooling System of The Active for Air Circulation Mode(Optional Parts) | ||||
The Control Mode of Coiling Tensio | The Control Mode for tension Feedback for AC Vector | ||||
The Control Scope of Coiling Tensionn | 25 kg -80 kg | ||||
The Loading and Unloading System of Plasma Axis | Pneumatic device loading and unloading | ||||
The Diameter of Coiling Plasma Shaft | Φ800 mm Φ920mm Φ1000mm |
||||
The Display System | Touch-operated Displays | ||||
The Electrical Assembly | 80 KVA | ||||
Steam assembly | 700 kg / h | 800 kg / h | |||
The Steam consumption | 600 kg / h | 700 kg / h |
Suzhou Sifang Technology Co., Ltd. is China sizing machine manufacturers and SFJ600 Type Sizing Machine factory with more than 30 years of experience.
The company has more than 100 employees. As a professional manufacturer of SFJ600 Type Sizing Machine. It has excellent processing and metal cutting equipment, as well as excellent design and development personnel, and high-quality employees team, and a strong quality management system.
The products are exported to many countries, with a total of seven sales outlets and sales of over 100 million US dollars.
The company's existing professional production machinery and equipment, production and supply of various series of products: SFZ700 series warping machine, SFJ600 series pulp wire, SFZJ600 series sizing machine, SFB300 series parallel axis machine, SFJ100 series drying drum pulping machine.
In particular, we always research and provide individual solutions according to the needs of our customers, and we make special customizations. Suzhou Sifang Technology Co., Ltd. has more than 6,000 square meters of modern workshops and other world-leading hardware; equipped with advanced processing systems. Realize mass production and partial assembly line operation.
Service Capability: In order to establish and enhance the popularity of Sifang Technology brand in overseas markets, we always adhere to the corporate culture of "Honesty, being a man, breaking into the world Team work goes all way", focus on developing and expanding the sales service center, and focus on SFJ600 Type Sizing Machine product quality , to ensure product after-sales.
