The Internal Structure Of Beaming Machine

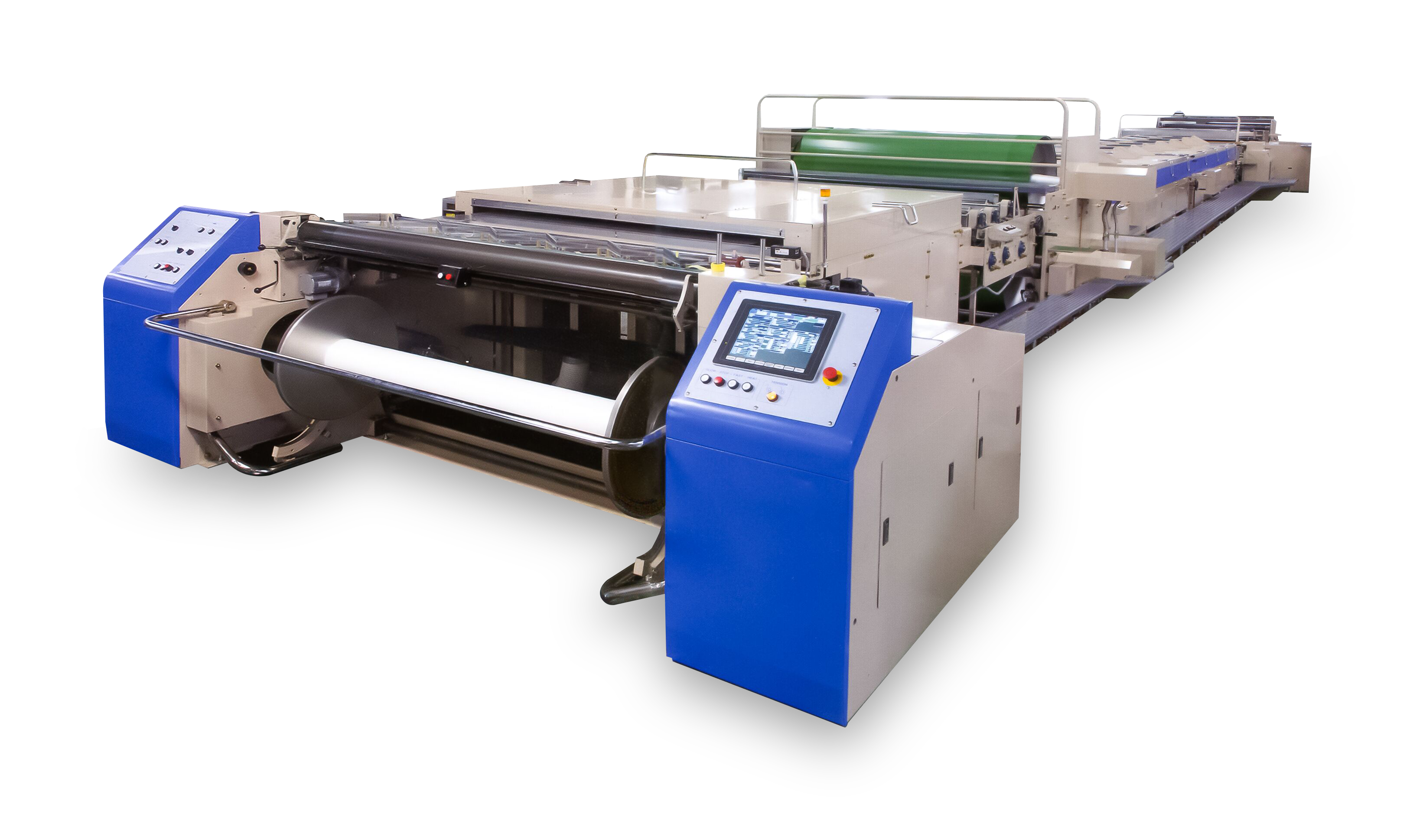

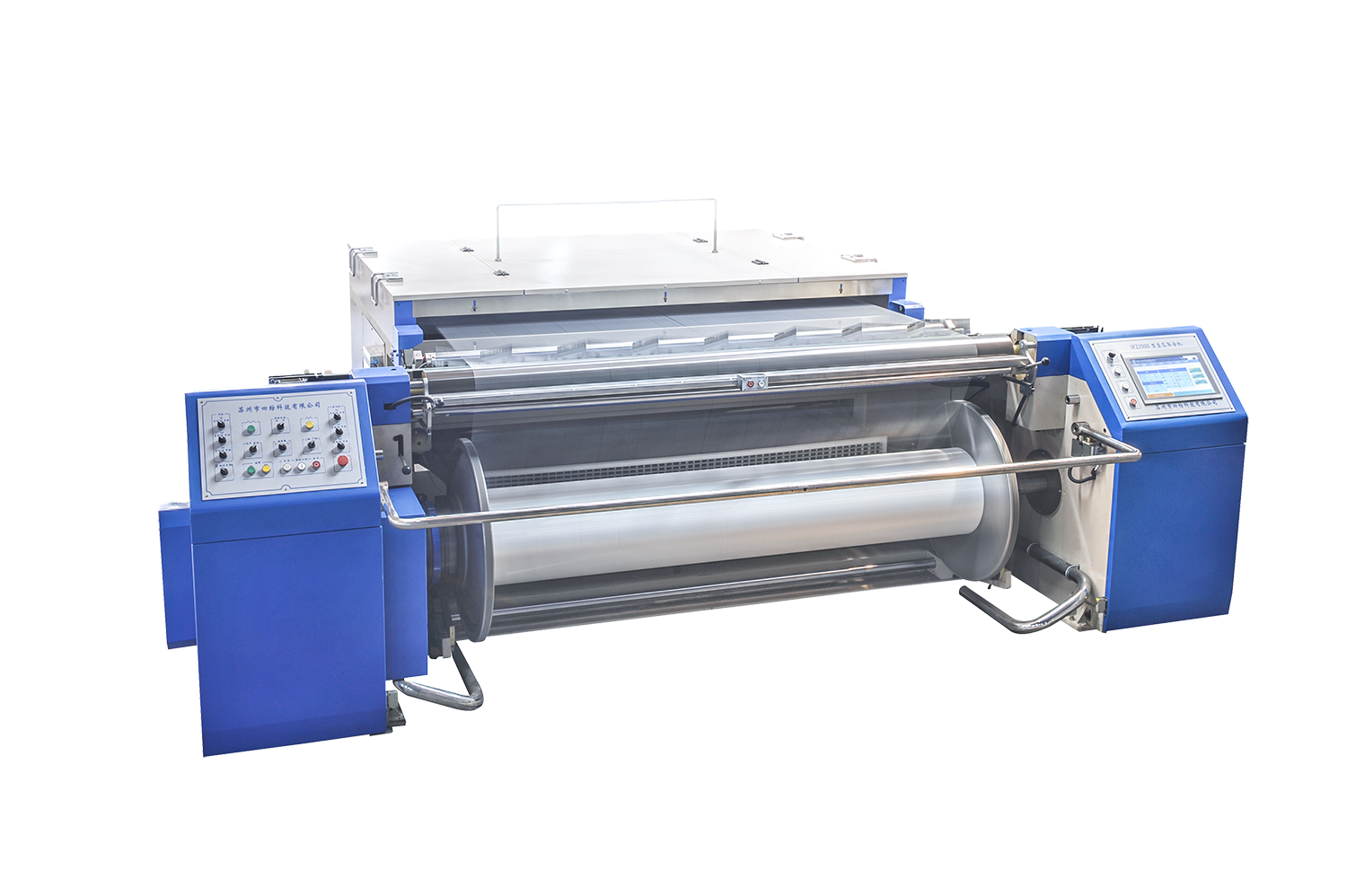

A beaming machine is a type of machine that is used in textile manufacturing to create a beam of yarn that can be used in the weaving process. The internal structure of a beaming machine can vary depending on the specific model and manufacturer, but generally, it consists of the following components:

Creel: A creel is a frame that holds the yarn cones or packages. The creel is located at the top of the machine and is designed to feed the yarn to the next stage.

Tension Control: The tension control system maintains a consistent tension of the yarn as it is wound onto the beam. This is important to ensure that the yarn is wound evenly and does not break.

Spreader Roller: A spreader roller is located at the beginning of the winding process and is used to spread out the yarn to the width of the beam.

Winding Drum: The winding drum is located at the center of the machine and is responsible for winding the yarn onto the beam. It rotates as the yarn is fed onto it, creating a cylindrical shape that is the finished product.

Beam Support: The beam support is a structure that holds the beam in place as it is being wound. It typically consists of two or more rollers that support the beam and ensure that it is wound evenly.

Yarn Guide: The yarn guide is a mechanism that guides the yarn onto the winding drum. It ensures that the yarn is fed onto the drum evenly and without tangling.

Drive System: The drive system is responsible for powering the beaming machine. It typically consists of a motor and a transmission system that drives the winding drum.

Overall, the internal structure of a beaming machine is designed to guide the yarn from the creel onto the winding drum, while maintaining consistent tension and ensuring even winding. The finished product is a beam of yarn that can be used in the weaving process to create textiles.
